Our CE-marked Reid Vapour Pressure Apparatus is a precision instrument for measuring the vapour pressure of gasoline, volatile crude oils, and other petroleum products. Compliant with ASTM D323, IP 69, and ISO 3007, this apparatus is ideal for laboratories and fuel testing facilities requiring accurate determination of vapour pressure for regulatory and quality control purposes.
Product Overview
The Reid method determines vapour pressure for fuels under controlled conditions:
• Procedure A: Gasoline and petroleum products with vapour pressure <180 kPa (26 psi). • Procedure B: Similar materials; precision verified with gasoline only. • Procedure C: Petroleum materials with vapour pressure >180 kPa (26 psi).
• Procedure D: Aviation gasoline with vapour pressure ~50 kPa (7 psi).
Not suitable for liquefied petroleum gases or fuels with oxygenated compounds other than MTBE.

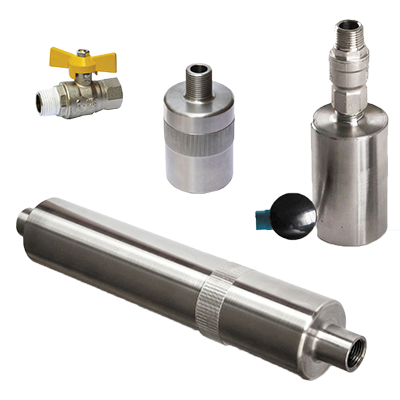

Key Components
Liquid Chambers
• LT/RC-179000-A – One Opening, 130 cc, stainless steel, corrosion-resistant, sloped inner surface for complete drainage.
• LT/RC-179000-C – Two Openings, 130 cc, stainless steel, equipped with 12.7 mm full-opening valve for precise control.
Vapour Chamber
• LT/RC-179000-B – 520 cc stainless steel chamber, finely polished interior, upper & lower ½” fittings (optional ¼” adapter available).
General Specifications
• Inside diameter: 51 mm | External diameter: 57 mm
• Vapour chamber length: 253 mm (internal), 268 mm (external)
• High-quality stainless steel, long-term corrosion resistance, optimised for complete liquid drainage
Accessories
• Thermostatic Bath: LT/TB-177000/M
• Pressure Gauges: LAB-101-793/100 – 0-100 kPa, LAB-101-793/200 – 0-200 kPa, LAB-101-793/300 – 0-300 kPa, LAB-101-793/700 – 0-700 kPa
• ASTM Thermometer: T-AS18C
• Sample Transfer Tool: LAB-179-006 (rubber stopper + 2 tubes)
Spare Parts
• Chamber gaskets: LAB-101-792-A (pack of 10)
• Pressure gauge gaskets: LAB-101-792-B (pack of 10)
Applications
• Gasoline and volatile crude oil testing
• Quality control in fuel and petroleum industries
• Regulatory compliance testing for ASTM, IP, and ISO standards
• Aviation fuel vapour pressure measurement
