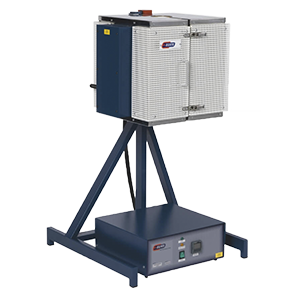

The TSVH Split Tube Furnace is purpose-built for in-line thermal processing applications where rapid cooling, precision, and operational efficiency are essential. Its vertical split-tube design features free-radiating, high-grade resistance wire heating elements supported on durable ceramic tubes, ensuring excellent temperature uniformity and long-term performance.

Key Standard Features

• Vertical mounted furnace design with the option of integrated controls or a remote control console connected via two metres of interconnecting cables.

• Split vertical furnace body, hinged at the rear, allowing the furnace to open easily for quick work tube changes or vessel insertion—ideal for fast-paced thermal workflows.

• High-quality, energy-efficient, low-thermal-mass insulation ensures fast heat-up and cool-down cycles, reducing energy use while improving productivity.

• Compatible with a wide range of work tubes up to 90 mm OD, when used with tube reducer inserts.

• Equipped with a durable ‘N’ type thermocouple for accurate, stable temperature measurement.

• Advanced microprocessor PID controller for precise process control and consistent heating performance.

• Note: A work tube is required for operation and must be ordered separately to suit the intended application.

Optional Features

• Work tubes are available in multiple materials, diameters, and lengths, offering flexibility for various thermal processing requirements.

• Options for atmosphere containment and protection against process contamination.

• Triple-flange gas-tight end seals to enable processing under vacuum or controlled gas atmospheres.

• Multi-program, multi-segment controllers for complex heating profiles.

• Over-temperature protection controllers for enhanced process safety.

The TSVH Split Tube Furnace is an excellent solution for laboratories and industrial environments that require accurate, efficient, and adaptable vertical thermal processing.
