High-Temperature Laboratory Thermal Processing

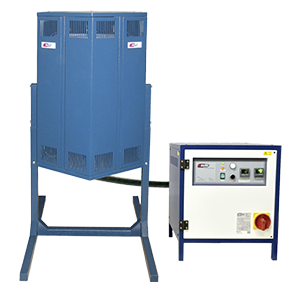

The TSV17 furnace is a vertical-mounted tube furnace with a separate control console, designed for high-performance laboratory thermal processing applications. Equipped with Molybdenum Disilicide (MoSiâ‚‚) heating elements, precise PID control, and robust insulation, the TSV17 ensures excellent temperature uniformity and reliable operation for research, industrial, and quality control laboratories.
Heating Elements
The TSV17 uses high-quality Molybdenum Disilicide single-loop heating elements arranged along the front and rear walls of the chamber. This layout provides uniform, consistent heating for accurate and repeatable high-temperature processes.
Standard Features
-
Constructed with high-grade insulation for rapid heat-up, energy efficiency, and stable temperature control
-
Designed for use with a separate work tube rated for the furnace’s maximum operating temperature
-
The work tube is not included and must be purchased as an essential accessory
-
Equipped with a B-type thermocouple for precise high-temperature monitoring
-
Standard over-temperature protection for operator safety
-
High-end microprocessor PID controller for accurate temperature regulation
-
Supplied with a remote control console, connected via a 2-meter flexible cable for safe and convenient operation
-
Phase-angle fired thyristor unit with low-voltage secondary isolating transformer for optimal heating element performance
Optional Accessories & Upgrades
-
Work tubes are available in multiple materials, lengths, and diameters
-
Tubes suitable for controlled atmospheres or protection from contaminants
-
Triple-flange gas-tight end seals for vacuum or gas atmosphere processing
-
Multi-segment, multi-program controllers for advanced thermal profiling
-
Thermal radiation plugs, screens, and shields
