Precision Thermal Processing for Laboratory Applications

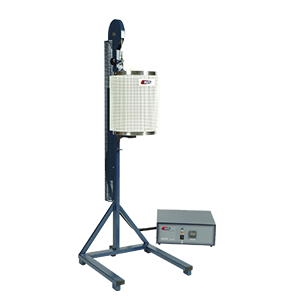

The TSV12 furnace is a vertical tube furnace with a separate control console, engineered for reliable, consistent laboratory thermal processing. Its advanced heating design, durable components, and flexible configuration options make it ideal for research, industrial laboratories, and quality-control environments that require stable, high-temperature performance.

Heating Elements

The TSV12 uses a specialised arrangement of resistance wire wound onto an integral ceramic work tube, ensuring superior temperature uniformity throughout the furnace. This efficient heating system delivers accurate, repeatable results across a wide range of thermal processes.

Standard Features

• Integral elemental ceramic tube for enhanced stability

• Protective outer mesh covers for increased operator safety

• Low-thermal-mass insulation for rapid heat-up, energy efficiency, and stable temperature control

• An optional separate work tube to prevent contamination during aggressive processes

• Rugged, metal-sheathed control thermocouple for durability and full use of work tube bore

• Type N thermocouple for accurate high-temperature performance

• Supplied with a separate control console connected via a 2m flexible cable for improved workflow and safety

• High-end microprocessor PID controller for precise temperature management

Available Options

• Work with tubes in multiple materials, lengths, and diameters

• Tubes suitable for controlled atmospheres or contamination prevention

• Triple-flange gas-tight end seals to support vacuum or gas atmosphere processing

• Multi-segment, multi-program storage controllers

• Over-temperature protection systems

• Thermal radiation plugs, screens, and shields
