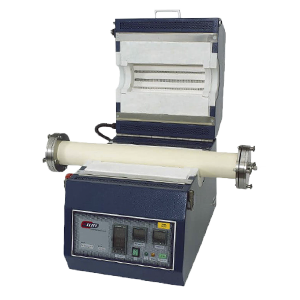

The Single Zone TSHH12 Split Tube Furnace is engineered for efficient in-line thermal processing where rapid cooling, precision, and flexibility are essential. With a horizontal split design and free-radiating, high-grade resistance-wire elements supported on ceramic tubes, this furnace delivers reliable temperature uniformity and long-lasting performance for laboratory and industrial applications.

Key Standard Features

• Bench-mounted design with the option of integrated controls or a remote control console connected via two metres of interconnecting cables.

• Horizontal split furnace body, hinged at the rear, allowing operators to easily open the furnace for quick work tube replacement or insertion of vessels—ideal for high-throughput thermal workflows.

• Low thermal mass and energy-efficient insulation ensure rapid heating and cooling, reducing energy consumption and improving cycle times.

• Compatible with work tubes up to 90 mm OD, when used with tube reducer inserts (work tube required and sold separately).

• Equipped with a reliable ‘N’ type thermocouple for precise temperature measurement.

• Advanced microprocessor PID controller for accurate, stable, single-zone temperature control.

Optional Features

• Work tubes are available in multiple materials, diameters, and lengths for diverse thermal processing applications.

• Tubes suitable for atmosphere containment or protection from process contamination.

• Triple-flange gas-tight end seals for processing under vacuum or controlled gas atmospheres.

• Multi-segment, multi-program controllers for advanced heating profiles.

• Over-temperature protection controllers for improved safety and process reliability.

The TSHH12 Split Tube Furnace offers exceptional accessibility, fast thermal response, and precise control—making it the ideal single-zone solution for laboratories and production environments requiring consistent, high-quality thermal processing.
