Fast, Accurate & Non-Destructive Gold and Precious Metal Analysis

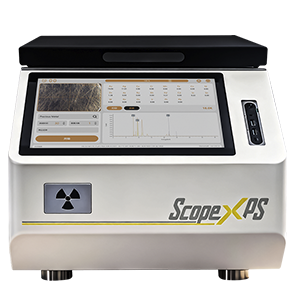

The ScopeX PS7 Gold Analyzer is an advanced, all-in-one precious metal XRF analyzer designed for high-precision testing of gold, silver, platinum, palladium, and other precious metal materials. Combining a high-performance X-ray generation system, high-sensitivity detector, and intelligent analysis software in one integrated instrument, the ScopeX PS7 provides a convenient, closed-loop testing workflow without requiring an external computer.
Designed for jewelry manufacturers, precious metal recyclers, refineries, testing laboratories, gold shops and quality inspection facilities, the ScopeX PS7 delivers rapid and reliable precious metal composition and purity analysis. Its large-area FSDD detector provides high sensitivity, high count rates and excellent energy resolution, helping detect trace impurities and reduce detection limits. With accuracy reaching ±0.01% for 9999 gold, the ScopeX PS7 is suited to demanding applications where accurate precious metal identification, purity verification and quality control are essential.
Key Features & Benefits
All-in-One Integrated Design
The ScopeX PS7 integrates the X-ray system, detector, touchscreen interface and intelligent analysis software into a single compact instrument. No external computer is required, making it a practical solution for jewelry counters, laboratories, testing centers, recycling facilities and industrial environments.
High-Performance FSDD Detector
The large-area FSDD detector combines high sensitivity, high count rates and excellent energy resolution. It helps capture characteristic signals from precious metals and trace impurities, improving measurement speed and analytical reliability, including when testing irregular samples.
High-Precision Gold Testing
Advanced XRF technology provides accurate precious metal composition and purity data, with accuracy reaching ±0.01% for 9999 gold. This makes the ScopeX PS7 suitable for high-value gold testing, recycling, quality control, and material verification.
Non-Destructive Precious Metal Analysis
The ScopeX PS7 requires no sample preparation and does not physically or chemically damage the sample during testing.
This makes it ideal for valuable items such as:
- Gold jewellery
- Antique coins
- Investment gold bars
- Precious metal components
- Artworks
- Finished jewellery
Items can remain intact after testing, helping preserve their value.
Gold, Silver, Platinum & Palladium Analysis
The ScopeX PS7 can simultaneously detect multiple precious metal elements, including:
- Gold (Au)
- Silver (Ag)
- Platinum (Pt)
- Palladium (Pd)
It can also identify adulterant elements such as tungsten, iridium, and rhenium, supporting more comprehensive precious metal quality assessment.
Gold-Over-Silver & Coating Structure Identification
One of the key advantages of the ScopeX PS7 is its ability to help distinguish between solid precious metal alloys and coated structures. The analyzer can identify gold-over-silver and gold-over-copper structures, helping prevent plated materials from being incorrectly identified as solid gold. This is particularly valuable for precious metal recycling, jewelry inspection, and material verification.
Coating Thickness & Composition Analysis
The ScopeX PS7 supports thickness measurement and composition analysis of single-layer and multi-layer metal coatings. It can identify common coatings such as gold plating and silver plating.
Applications include:
- Jewellery coating inspection
- Gold and silver plating process control
- Clad sample screening
- Hardware electroplating quality control
- Coating composition verification
One-Click Testing
The intelligent operating system simplifies precious metal analysis. Users can place the sample, close the cover, start the test, and view the results with minimal training. The intuitive interface makes the analyzer suitable for both experienced laboratory personnel and non-technical operators.
Intelligent Analysis Algorithms
The ScopeX PS7 combines a calibration curve method with a Fundamental Parameters (FP) method to reduce background differences and improve analytical accuracy. The system is designed to accommodate different sample forms, including pure gold, karat gold, coated samples, and complex alloys.
Flexible Sample Testing
The ScopeX PS7 can accommodate a wide variety of sample shapes and sizes. Small areas and components can also be targeted for analysis, including:
- Jewellery joints
- Buttons
- Inlays
- Gemstone settings
- Small precious metal components
- Irregular samples
Built-In HD Camera
A built-in 5-megapixel HD CMOS color camera assists with sample positioning and image recording. It also helps ensure that the X-ray is accurately directed at the desired analysis area.
Comprehensive Safety Protection
The ScopeX PS7 incorporates multiple safety mechanisms, including:
- Automatic high-voltage safety interlock
- Software-controlled cover opening
- Leakage protection switch
- Fully enclosed metal chassis
These features are designed to support safe operation and minimize the risk associated with accidental exposure during XRF testing.
Applications of the ScopeX PS7 Gold Analyzer
Gold Recycling & Precious Metal Recovery
The ScopeX PS7 provides rapid gold purity and precious metal composition analysis for recycling operations. Accurate testing of recycled materials helps recyclers determine precious metal content, assess material value, and make better purchasing and pricing decisions. Gold-over-silver and other coated materials can also be identified, helping reduce the risk of inaccurate valuation.
Jewelry Manufacturing & Factory Quality Control
Jewelry manufacturers can use the ScopeX PS7 to test raw materials, semi-finished products, and finished jewelry.
Fast, non-destructive analysis supports:
- Incoming material inspection
- Alloy verification
- Production quality control
- Finished-product testing
- Precious metal composition verification
- Coating inspection
- Product consistency
This helps manufacturers maintain quality standards, reduce material-related costs and improve customer confidence.
Gold Shops & Jewelry Showrooms
The ScopeX PS7 is suitable for gold shops, jewelry showrooms and businesses involved in buying, selling, exchanging and recycling precious metals. It can be used to verify the composition and purity of gold and platinum jewelry, helping businesses assess products and support transparent customer transactions.
Precious Metal Testing Laboratories & Certification Centers
Testing laboratories and quality inspection centers can use the ScopeX PS7 for rapid precious metal purity testing, composition analysis, and material verification. XRF analysis requires no destructive sample preparation and can provide results within minutes, helping testing facilities improve workflow efficiency and support consistent quality inspection.
Precious Metal Refining
The ScopeX PS7 supports quality control within precious metal refining operations by providing rapid elemental analysis of gold and other precious metals. Its ability to detect trace impurities and distinguish coated structures makes it valuable for material verification and refining quality control.
