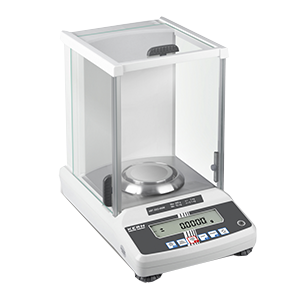

The KERN ABT Analytical Balance Series delivers ultra-precise weighing performance using advanced single-cell technology, making it ideal for pharmaceutical laboratories, research facilities, and quality control environments. Designed for demanding analytical applications, the ABT series combines exceptional measurement accuracy with reliable automation and data traceability.

Equipped with automatic internal calibration, these analytical balances maintain consistent accuracy even when environmental conditions change. Calibration is triggered automatically when temperature variations exceed ≥0.5 °C or at scheduled 4-hour intervals, ensuring dependable, location-independent weighing performance.

The ABT series includes an integrated dosage aid with high-stability mode and adjustable filter settings, allowing precise sample handling and controlled dispensing. Recipe weighing and documentation functions automatically number ingredients and print their nominal weights, supporting Good Laboratory Practice (GLP) compliant reporting.

For improved traceability, the balance features a programmable 4-digit identification number, enabling clear identification of calibration records. Automatic data output ensures seamless integration with laboratory workflows by transmitting results directly to connected computers or printers through the RS-232 interface.

A large glass draught shield with three sliding doors allows convenient access to samples while protecting measurements from airflow disturbances. The balance also includes a protective working cover to safeguard the instrument during routine laboratory use.

Key Features

• Premium single-cell weighing system for ultra-high precision

• Automatic internal calibration triggered by temperature change or timed intervals

• Integrated dosage aid with high-stability weighing mode

• Recipe weighing with automatic ingredient numbering and printing

• GLP-compliant calibration reports available at the touch of a button

• Programmable 4-digit identification number for traceability

• Automatic data output to PC or printer when the balance stabilizes

• Large glass draught shield with three sliding doors for easy access

• RS-232 interface for laboratory data connectivity

• Protective working cover included

ABT Analytical Balance Models

ABT 120-5DNM

• Weighing Capacity: 42 g / 120 g

• Readability: 0.00001 g / 0.0001 g

• Units: g, ct

• Linearity: ±0.00003 g / ±0.0002 g

• Reproducibility: 0.00002 g / 0.0001 g

• Stabilization Time: 10 s / 4 s

• Adjustment Options: Automatic internal calibration and manual internal weight adjustment

• Operating Temperature: 10 °C – 30 °C

ABT 220-5DNM

• Weighing Capacity: 82 g / 220 g

• Readability: 0.00001 g / 0.0001 g

• Units: g, ct

• Linearity: ±0.0001 g / ±0.0002 g

• Reproducibility: 0.00005 g / 0.0001 g

• Stabilization Time: 10 s / 4 s

• Adjustment Options: Automatic internal calibration and manual internal weight adjustment

• Operating Temperature: 10 °C – 30 °C

Applications

The ABT Analytical Balance Series is designed for high-precision weighing in:

• Pharmaceutical laboratories

• Research and development laboratories

• Quality control and analytical testing facilities

• Precision sample preparation and formulation

• Recipe weighing and GLP-compliant documentation
