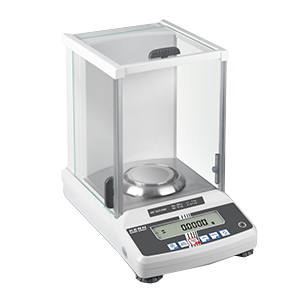

The KERN ABT Analytical Balance Series provides ultra-precise analytical weighing using advanced single-cell technology, designed for laboratories that require reliable, stable, and highly accurate measurements. Ideal for pharmaceutical, chemical, research, and quality control laboratories, the ABT series combines exceptional readability, high reproducibility, and intuitive laboratory functionality.

These analytical balances feature automatic internal adjustment, ensuring consistent measurement accuracy even when environmental conditions change. Calibration is automatically triggered when temperature variations exceed ≥0.5 °C or at programmed 4-hour intervals, allowing dependable results regardless of installation location.

The ABT series includes a dosage aid with high-stability mode and adjustable filter settings, enabling precise dispensing and controlled weighing for sensitive samples. A recipe weighing and documentation function simplifies formulation workflows by automatically numbering ingredients and recording nominal weights via a combined tare-and-print function.

To support laboratory compliance and traceability, the balance can generate GLP-compliant calibration reports at the touch of a button. A programmable 4-digit identification number is printed on calibration protocols to ensure proper documentation and equipment traceability.

Data management is simplified with automatic data output to connected PCs or printers once the measurement stabilizes, enabling seamless integration with laboratory documentation systems via the RS-232 interface.

The ABT Analytical Balance Series also includes a large glass draught shield with three sliding doors for convenient sample access while minimizing airflow disturbances. A protective working cover helps safeguard the balance during daily laboratory operations.

Key Features

• Advanced single-cell weighing system for ultra-high precision

• Automatic internal calibration triggered by temperature changes or timed intervals

• Dosage aid with high-stability weighing mode and filter settings

• Recipe weighing and documentation with automatic ingredient numbering

• GLP-compliant calibration report available at the press of a button

• Programmable 4-digit identification number for traceability

• Automatic data output to PC or printer when measurements stabilize

• Large glass draught shield with three sliding doors for easy sample access

• RS-232 interface for laboratory data connectivity

• Protective working cover included

ABT Analytical Balance Models

ABT 100-5NM

• Weighing Capacity: 101 g

• Readability: 0.00001 g

• Units: g, ct

• Linearity: ±0.00015 g

• Reproducibility: 0.00005 g

• Stabilization Time: 10 s

• Adjustment Options: Automatic internal calibration and manual internal weight adjustment

• Operating Temperature: 10 °C – 30 °C

ABT 320-4NM

• Weighing Capacity: 320 g

• Readability: 0.0001 g

• Units: g, ct

• Linearity: ±0.0003 g

• Reproducibility: 0.00015 g

• Stabilization Time: 4 s

• Adjustment Options: Automatic internal calibration and manual internal weight adjustment

• Operating Temperature: 10 °C – 30 °C

Applications

The ABT Analytical Balance Series is ideal for precision weighing in:

• Pharmaceutical and chemical laboratories

• Quality control and research laboratories

• Sample preparation and analytical formulation

• Recipe weighing and ingredient dosing

• Laboratory tasks requiring ultra-precise analytical weighing
