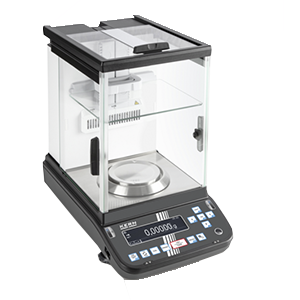

The KERN ABP DM Analytical Balance Series represents the next generation of premium analytical balances, engineered for ultra-fast, stable, and highly accurate weighing across a wide range of laboratory applications. Powered by innovative Single-Cell Generation technology, these balances provide significantly faster measurement results and exceptional precision compared to conventional analytical balances.

Designed for pharmaceutical, chemical, research, and academic laboratories, the ABP DM series combines advanced weighing performance with powerful workflow features, including automatic internal adjustment, dosage assistance, recipe documentation, and multi-user access control.

With a user-friendly navigation pad and intuitive menu system, the ABP DM series ensures efficient operation and streamlined laboratory processes. Automatic internal calibration is triggered by temperature changes of ≥1 °C or by time control every 4 hours, maintaining measurement accuracy even in changing laboratory environments.

The balances also feature minimum weight monitoring, alerting users when a sample weight falls below the acceptable threshold. This ensures compliance with quality standards and helps maintain reliable analytical results.

Advanced recipe weighing and documentation functions enable automatic ingredient numbering and simplified data capture via a combined tare-and-print function. Multi-user management allows up to 10 individual user profiles, including password protection, barcode login, and optional guest access for shared laboratory environments.

Connectivity is simplified through RS-232 and USB interfaces, enabling data transfer to computers, printers, or USB keyboards. The balance also supports automatic data output once the measurement stabilizes, ensuring accurate and efficient data recording.

The ABP DM series features a large glass draught shield with three sliding doors to protect measurements from air currents while allowing easy access to samples. A multi-function weighing plate further minimizes air turbulence and enhances measurement stability.

These balances are fully compliant with FDA 21 CFR Part 11, ensuring secure electronic records and data integrity for laboratories operating in regulated environments.

Key Features

• Single-Cell Generation technology for ultra-fast and highly stable weighing

• Navigation pad interface for intuitive menu navigation

• Automatic internal adjustment triggered by temperature changes or timed intervals

• Minimum weight monitoring with warning alerts

• Dosage aid with high-stability mode and selectable filter settings

• Recipe weighing and documentation with automatic ingredient numbering

• Combined tare and print function for streamlined workflows

• Multi-user management for up to 10 profiles with password protection and barcode access

• RS-232 and USB connectivity for PC, printer, and keyboard integration

• Automatic data output when measurement stabilizes

• Large glass draught shield with three sliding doors

• Multi-function weighing plate to reduce air current influence

• Protective working cover included

• FDA 21 CFR Part 11 compliant for secure data management

ABP DM Analytical Balance Models

ABP 100-5DM

• Weighing Capacity: 52 g / 120 g

• Carat Capacity: 600 ct

• Readability: 0.00001 g / 0.0001 g

• Carat Readability: 0.0001 ct / 0.001 ct

• Verification Scale Interval: 0.001 g

• Minimum Weight: 0.001 g

• Linearity: ±0.00005 g / ±0.0002 g

• Units: g, mg, ct

ABP 200-5DM

• Weighing Capacity: 102 g / 220 g

• Carat Capacity: 1100 ct

• Readability: 0.00001 g / 0.0001 g

• Carat Readability: 0.0001 ct / 0.001 ct

• Verification Scale Interval: 0.001 g

• Minimum Weight: 0.001 g

• Linearity: ±0.0001 g / ±0.0002 g

• Units: g, mg, ct

Applications

The ABP DM Analytical Balance Series is ideal for precision weighing in:

• Pharmaceutical, chemical, and biotechnology laboratories

• Research and development laboratories

• Advanced university and teaching laboratories

• Sample preparation, formulation, and recipe weighing

• Regulated environments requiring FDA-compliant data recording
