The heat of combustion test is a critical procedure for determining the energy content of hydrocarbon fuels, coal, and building materials. Using a bomb calorimeter, this method measures the calorific value of fuels under constant-volume combustion, providing essential data for energy efficiency, performance, and quality control.
Applicable standards include:
• ASTM D240 / IP 12 – Heat of combustion of liquid hydrocarbon fuels (light distillates to residual fuels).
• ASTM D4809 / ASTM D2382 (obs..) – Precision method for aviation turbine fuels and a wide range of hydrocarbon fuels.
• ASTM D5865 / ASTM D3286 (obs..) – Gross calorific value of coal and coke by adiabatic bomb calorimeter.
• ISO 1716 – Reaction to fire test for building products, measuring heat of combustion at constant volume.
LT/MB-206000/M /M – Mahler Bomb (Oxygen Bomb Calorimeter)
A robust manual oxygen bomb designed for high-precision calorific value testing:
• Fully stainless-steel construction, including electrodes.
• 300 ml capacity with threaded cover and gasket seal.
• Automatic inlet valve and pin exhaust valve.
• Tested at 210 bar for maximum safety and reliability.

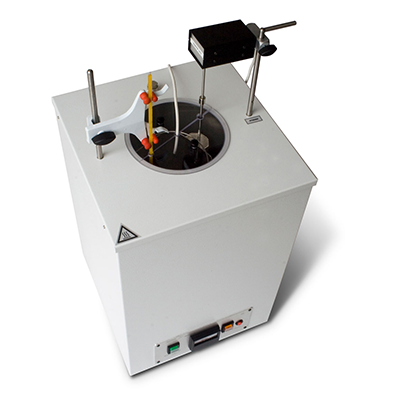

LT/CV-207000/M /M/M – Calorimeter Vessel with Ignition Device
A manual calorimeter vessel for accurate heat of combustion analysis:
• Bench-top metallic structure with anti-acid coating and double insulation.
• Stainless steel 18/8 double-jacket tank, 3 L capacity.
• Motor stirrer, 100 rpm (24V), with support for homogeneous mixing.
• Double pliers for thermometer placement.
• Connections for Mahler bomb electrodes.
• Integrated ignition device with low-voltage outlet, pushbutton start, ammeter, and 24 V socket.
• Power supply: 220 or 115 Vac, 50 Hz.
LT/CV-207000-S/M – Calorimeter Vessel without Ignition Device
An alternative calorimeter vessel for standard testing procedures:
• Stainless steel 18/8 double-jacket tank, 3 L capacity.
• Handle for easy extraction.
• Polycarbonate sectors for stirrer access.
• Blade stirrer with 100 rpm motor (24 V).
• Double pliers for thermometer.
• Connections for Mahler bomb electrodes.
• Power supply: 220 or 115 Vac, 50 Hz.
These instruments are designed for accurate, repeatable, and standards-compliant determination of calorific values, ensuring reliable testing for fuels, coal, coke, and construction materials.
