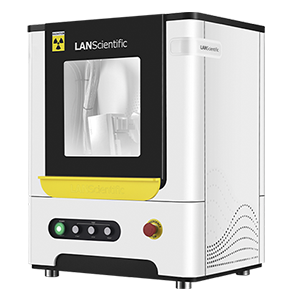

The FRINGE EV benchtop X-ray diffractometer is a high-power, compact XRD instrument engineered for rapid, precise, and reliable material characterization. With KW-class power output, advanced detection technology, and automated data analysis, the FRINGE EV delivers professional-grade diffraction results in a space-saving design—ideal for laboratories, universities, and industrial R&D facilities.

Key Features of the FRINGE EV XRD

• High-Power KW-Class Performance
  Provides outstanding analytical capabilities in a compact benchtop system, enabling fast phase identification, crystal structure analysis, and determination of crystallinity.

• Integrated Optical System
  Utilizing a sola slit, divergent slit, and reflection geometry (θs-θd), the FRINGE EV ensures precise diffraction patterns that meet Bragg’s law, producing highly accurate results for powders, thin films, and bulk materials.

• CrystalX Automated Software
  With a single click, CrystalX automatically performs phase analysis and calculates component percentages, making XRD analysis accessible to users of all skill levels.

• Compact & Space-Saving Design
  Features an air-spring, large-window lift door, and an integrated water circulation cooling system, eliminating the need for an external chiller and optimizing desktop space.

• Enhanced Safety
  Equipped with an automatic cut-off, safety interlock system, and a fully enclosed sample chamber for operator protection.

• Reliable Integrated Sola Slits
  With no moving parts, the integrated sola slits improve goniometer stability and allow installation in mobile or in-vehicle laboratories.

Applications

The FRINGE EV is widely used in materials science, building materials, pharmaceuticals, nanotechnology, and academic research. Its versatility makes it the perfect solution for crystal structure determination, phase analysis, residual stress measurement, and material quality control.
