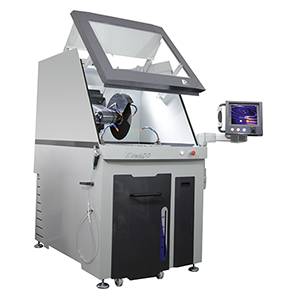

The EVO 400 (Ref. 50400) and EVO 400+ (Ref. 50430) are large-size precision cutting machines designed for workshops and laboratories that handle oversized or heavy components. With a spacious 190 mm cutting height and the ability to support parts weighing over 200 kg, the EVO 400 offers outstanding durability and reliability.

Equipped with three cutting modes – assisted, automatic, and programmable – it ensures accuracy, repeatability, and user-friendly operation. Its ergonomic design includes a motorised hood and an intuitive, multilingual touchscreen interface, making it easy to operate even in demanding environments.

Key Features
• Large cutting capacity with Ø400 mm cutting wheel
• Supports parts weighing over 200 kg
• Spacious 190 mm cutting height
• Manual and automatic operation
• Three modes: assisted, automatic, programmable (for repeatability)
• Ergonomic design with motorised hood and touchscreen controls

Optional Accessories
• Positioning the Laser for precision alignment
• Manual transverse movement table (X-axis) for lateral adjustment and parallel sectioning
• Manual longitudinal movement table (Y-axis) for increased cutting capacity

Specifications
• Wheel Diameter: Up to Ø400 mm
• Type of Machine: Cutting machine
• Operation: Manual and automatic
• Transverse Displacement: Manual

The EVO 400 is a powerful, heavy-duty solution that combines strength, precision, and versatility, making it the perfect choice for industrial workshops, metallography, and material testing laboratories.
