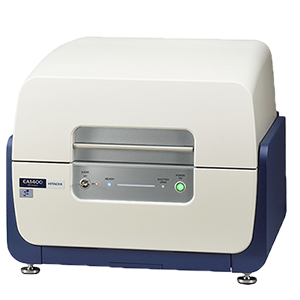

EA1400 RoHS XRF Analyzer

EA1400 RoHS XRF Analyzer

The EA1400 benchtop XRF analyzer is designed explicitly for RoHS (Restriction of Hazardous Substances) compliance testing. Together with the EA1000AIII, Hitachi’s RoHS analyzers have been trusted worldwide for over 15 years to deliver fast, reliable, and accurate results for manufacturers and laboratories that need to comply with environmental regulations.

With rapid, non-destructive measurements, the EA1400 makes it easy to screen electronic components, plastics, metals, and other materials for restricted substances such as lead (Pb), mercury (Hg), cadmium (Cd), chromium (Cr), and bromine (Br).

Why Choose the Hitachi EA1400 RoHS Analyzer?

  • Fast and accurate RoHS compliance screening – <35 seconds for plastics, <170 seconds for brass

  • Easy operation with automatic calibration selection for RoHS screening

  • Flexible compliance testing – adapts to evolving RoHS standards

  • 12-position carousel option for unattended batch analysis

  • Large sample chamber to handle a wide variety of samples

  • Visual and audio measurement indicators for user-friendly operation

  • Data and trend management software to ensure consistent quality and regulatory compliance

Key Features of the EA1400 XRF Analyzer

  • Benchtop EDXRF analyzer for fast hazardous substances screening

  • Element detection range: Al (13) – U (92), or Na (11) – U (92) with vacuum option

  • Qualitative and quantitative materials analysis using empirical and standardless (FP) calibrations

  • Thin film/coating thickness measurement (optional)

  • Sample flexibility: solids, liquids, and powders

  • High-resolution silicon drift detector (SDD) for superior spectral resolution and accuracy

  • Optimized measurement conditions with five programmable filters

  • Programmable analysis area sizes (1mm, 3mm, 5mm)

  • Color CCD camera for precise sample observation

  • Optional 12-position sample changer for higher throughput

  • Compact chamber size: 304(W) × 304(D) × 110(H) mm

  • PC operation via laptop or desktop for easy integration into lab workflows

✅ The Hitachi EA1400 XRF RoHS analyzer is the ideal solution for fast, accurate hazardous substance testing, helping businesses ensure product safety, maintain quality standards, and comply with RoHS and other environmental directives.
