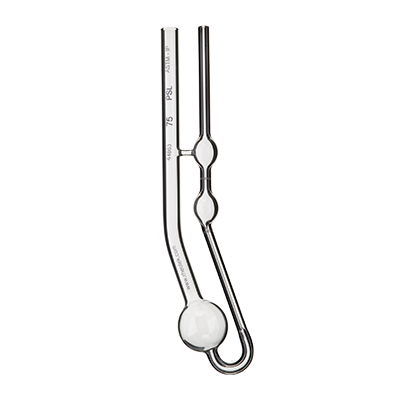

The Cannon-Fenske Routine Viscometer is a widely used laboratory viscometer designed for the accurate measurement of viscosity in transparent liquids. Ideal for chemical, petrochemical, and research laboratories, it provides reliable and repeatable results for a wide range of viscosities.
Calibration data is provided at 40°C, 50°C, and 100°C, and each viscometer is supplied with a UKAS Certificate of Calibration (ISO 17025) to ensure traceable and certified measurements. With a nominal overall length of 250 mm and an approximate sample volume of 7 mL, this glass viscometer is compact yet highly precise.
Key Features:
-
Suitable for transparent liquid viscosity measurement
-
Calibration data at 40°C, 50°C, and 100°C
-
Supplied with UKAS ISO 17025 Calibration Certificate
-
Nominal length: 250 mm | Sample volume: approx. 7 mL
-
Complies with: ASTM D446, ISO 3105, IP 71 Part 2, BS 188
-
Test methods: ASTM D445, ISO 3104, IP 71 Part 1, BS 188
-
Easy to use for routine laboratory viscosity testing
Technical Specifications:
| Part No. | Size | Constant (mm²/s²) | Range (mm²/s) |
|---|---|---|---|
| 1634/01 | 25 | 0.002 | 0.5 – 2 |
| 1634/02 | 50 | 0.004 | 0.8 – 4 |
| 1634/03 | 75 | 0.008 | 1.6 – 8 |
| 1634/04 | 100 | 0.015 | 3 – 15 |
| 1634/05 | 150 | 0.035 | 7 – 35 |
| 1634/06 | 200 | 0.1 | 20 – 100 |
| 1634/07 | 300 | 0.25 | 50 – 250 |
| 1634/08 | 350 | 0.5 | 100 – 500 |
| 1634/09 | 400 | 1.2 | 240 – 1,200 |
| 1634/10 | 450 | 2.5 | 500 – 2,500 |
| 1634/11 | 500 | 8 | 1,600 – 8,000 |
| 1634/12 | 600 | 20 | 4,000 – 20,000 |
| 1634/13 | 650 | 50 | 10,000 – 50,000 |
| 1634/14 | 700 | 100 | 20,000 – 100,000 |
Important Note: Requires constant sample volume at filling temperature. Minimum flow times are 250 seconds for size 25 and 200 seconds for all other sizes, as per ASTM D445/6.
Sample Certificate available upon request.
