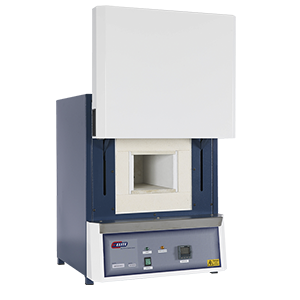

The BSF12-SY Chamber Furnace is engineered for heavy-load applications and for processing materials that may contaminate floor-mounted heating elements through spillage. Available in standard capacities from 4 to 45 litres, with custom-built volumes available, this furnace combines reliability, safety, and precise thermal control for laboratory and industrial processes.

Key Features

• Slab-embedded heating elements are mounted on two chamber sides for uniform heat distribution and efficient operation.

• Low-thermal-mass insulation for rapid heating and cooling cycles, reducing process times.

• Durable steel outer case finished in attractive blue epoxy powder coating for long-term durability.

• Vertically lifting the door keeps hot surfaces away from the operator, enhancing safety.

• A positive-break door safety switch isolates the heating elements when the door is opened.

• High-end microprocessor PID controller for accurate and consistent temperature control.

• Replaceable ceramic hearth tile for easy maintenance and extended service life.

• Small ceramic chimney included as standard for effective fume extraction.

Optional Features

• Four-sided heating elements for heavier loads or metal retorts.

• Powered exhaust and fan-assisted chimney systems.

• Temperature indicator and overtemperature protection system.

• Multi-segment, multi-program storage controllers.

• Gas inlet with a flowmeter for controlled-atmosphere processes.

• Time switch for automated operations.

• I-Tools communications software for monitoring and data logging.
