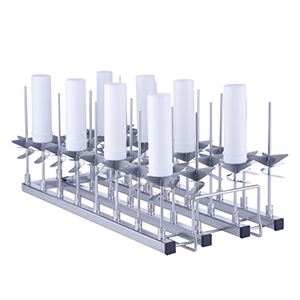

The STIER A408B 4×8 Module is a specialized washing basket module designed for automated laboratory glassware washers, including the STIER S8000D Series. It forms part of the STIER A408 Module system and provides dedicated positioning for laboratory glassware during automated washing and drying. The A408B is suitable for volumetric flasks, measuring cylinders, tubes and other compatible laboratory glassware. Its 4×8 configuration combines 32 washing nozzles, 32 POM cross supports, and 32 triangle clamps to help position and secure laboratory vessels within the washing system.
Key Features
- 4×8 module configuration
- Designed for the STIER A408 Module system
- Suitable for automatic laboratory glassware washers
- Compatible with the S8000D Series
- Suitable for volumetric flasks, measuring cylinders, tubes, and similar glassware
- 32 washing nozzles
- 32 POM cross supports
- 32 triangle clamps
- N40150 nozzles with 4 mm diameter and 150 mm height
- S40PC 4.0 POM cross supports
- C40ST 4.0 triangle clamps
- Designed to help center glassware during automated cleaning
- Helps maintain the appropriate distance between glassware and spray nozzles
- Provides accessible positioning for loading and unloading
Efficient Automated Laboratory Glassware Cleaning
Correct positioning of laboratory glassware is an important part of automated washing. STIER states that its basket rack configurations are designed to center glassware, maintain the correct distance between the bottom of the glassware and the nozzle, and provide easy access. The A408B 4×8 Module provides dedicated washing positions for volumetric flasks, measuring cylinders, tubes and other compatible laboratory vessels. The combination of 32 nozzles, 32 POM supports, and 32 triangle clamps provides a structured configuration for automated cleaning. STIER’s modular washing platform allows laboratory glassware washers to be configured with different washing basket modules according to the type and size of glassware being processed. The accessory range includes washing basket frames, washing basket modules and laboratory glassware washer accessories.
Applications
The A408B 4×8 Module is suitable for automated cleaning of:
- Volumetric flasks
- Measuring cylinders
- Laboratory tubes
- Small and medium laboratory vessels
- Compatible laboratory glassware requiring dedicated positioning
- Routine laboratory washing and drying applications
Industries
Laboratory | Pharmaceutical | Biotechnology | Life Sciences | Research & Development | Quality Control | Chemical Laboratories
STIER develops cleaning systems for laboratories, pharmaceutical and healthcare environments, with laboratory glassware washers and modular accessories designed for different cleaning requirements. STIER laboratory applications also include pharmaceutical, dairy, and commercial laboratories, making modular glassware cleaning relevant across a range of laboratory environments.
Product Information
Product: A408B 4×8 Module
Model: A408B
Brand: STIER
Product Type: Washing Basket Module
Primary Application: Automatic Laboratory Glassware Washers
Compatible Washer: S8000D Series
Compatible System: STIER A408 Module System
Configuration: 4×8
Suitable For: Volumetric flasks, measuring cylinders, tubes, and other compatible laboratory glassware
Nozzles: 32
Nozzle Type: N40150
Nozzle Diameter: 4 mm
Nozzle Height: 150 mm
POM Cross Supports: 32
Support Type: S40PC 4.0 POM Cross Support
Triangle Clamps: 32
Clamp Type: C40ST 4.0 Triangle Clamp
Why Choose the STIER A408B 4×8 Module?
The STIER A408B 4×8 Module provides a purpose-designed solution for laboratories that need to clean multiple volumetric flasks, measuring cylinders, tubes, and similar laboratory vessels using an automated glassware washer. Its combination of 32 spray nozzles, 32 POM cross supports, and 32 triangle clamps provides organized positioning within the washing system. The module is designed to work as part of the STIER A408 system and is suitable for the S8000D laboratory glassware washer. The modular design lets laboratories select an appropriate washing configuration based on the glassware being processed. STIER promotes its modular cleaning platform as a flexible solution for handling different types of laboratory glassware.
