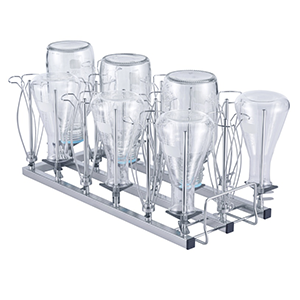

The STIER A306X3 3×6 Module is a specialized washing basket module designed for integration into the STIER A306 Module system and use with automatic laboratory glassware washers, including the S8000D Series. It supports automated washing and drying of a wide range of laboratory glassware, helping laboratories establish an efficient, organized glassware cleaning process. The A306X3 suits volumetric flasks, Erlenmeyer flasks, round-bottom flasks, Schott bottles, measuring cylinders, test tubes, and other compatible laboratory vessels. Its combination of stainless steel holders, POM cross supports, dedicated spray nozzles, and clamps positions glassware correctly during automated washing.
Key Features
- Model: A306X3
- Brand: STIER
- Configuration: 3 × 6 Module
- Primary application: Automatic laboratory glassware washers
- Compatible system: STIER A306 Module system
- Compatible washer: S8000D Series
- Suitable for: Volumetric flasks, Erlenmeyer flasks, round-bottom flasks, Schott bottles, measuring cylinders, test tubes, and more
- Holder/support configuration: 150 mm stainless steel flower-shaped holder with POM cross support
- Nozzles: 18 × N60150
- Nozzle diameter: 6 mm
- Nozzle height: 150 mm
- Holders: 9 × S60SSM 6.0 stainless steel square holders
- Additional holders: 9 × S60SSL 6.0 large stainless steel square holders
- Clamps: 18 × C60SL 6.0 ladder clamps
Designed for Effective Glassware Positioning
The correct washing basket rack or module is important for effective automated glassware cleaning. The A306X3 is designed to help:
- Centre laboratory glassware within the washing module
- Maintain the appropriate distance between the bottom of the glassware and the spray nozzle
- Provide convenient access when loading and unloading glassware
- Support consistent positioning during automated washing and drying cycles
The modular design lets laboratories select a basket configuration suited to the glassware being processed, supporting flexible automated cleaning workflows. STIER’s laboratory washer systems are designed around modular cleaning solutions for laboratory environments.
Applications
The STIER A306X3 3×6 Module is suitable for automated cleaning of compatible:
- Volumetric flasks
- Erlenmeyer flasks
- Round-bottom flasks
- Schott bottles
- Measuring cylinders
- Test tubes
- Other compatible laboratory glassware
It is particularly useful for laboratories that require repeatable positioning and automated washing of different types of laboratory vessels.
Industries
The A306X3 module is suitable for use in laboratory environments including:
- Pharmaceutical laboratories
- Biotechnology laboratories
- Life science laboratories
- Chemical laboratories
- Research and development laboratories
- Quality control laboratories
- Universities and research institutions
- Industrial laboratories
STIER identifies laboratory, animal laboratory, pharmaceutical, and hospital environments among the industries served by its cleaning systems.
Why Choose the STIER A306X3 Module?
The A306X3 3×6 Module provides a dedicated configuration for laboratories using STIER automated glassware washing systems. Its 18 spray nozzles, 18 holders, and 18 clamps provide structured positioning for compatible laboratory vessels during automated cleaning. By maintaining proper positioning between laboratory glassware and the spray nozzles, the module supports an organized and repeatable glassware washing process. It is part of STIER’s broader modular approach to automated laboratory cleaning, where different rack and module configurations can be selected to meet laboratory requirements.
Product Information
Product: A306X3 3×6 Module
Model: A306X3
Brand: STIER
Primary Application: Automatic Laboratory Glassware Washers
Compatible Washer: STIER S8000D Series
Module System: A306 Module
Configuration: 3 × 6
Suitable Glassware: Volumetric flasks, Erlenmeyer flasks, round-bottom flasks, Schott bottles, measuring cylinders, test tubes and other compatible glassware
Holder/Support: 150 mm stainless steel flower-shaped holder with POM cross support
Nozzles: 18 × N60150, 6 mm diameter, 150 mm height
Holders: 9 × S60SSM 6.0 stainless steel square holders
Additional Holders: 9 × S60SSL 6.0 large stainless steel square holders
Clamps: 18 × C60SL 6.0 ladder clamps
