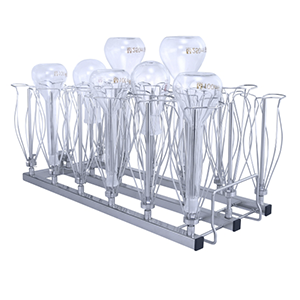

The STIER A306C 3×6 Module is a specialized washing basket module designed for integration into the STIER A306 Module system and automatic laboratory glassware washers such as the S8000D Series. The module supports automated washing and drying of a variety of laboratory glassware. Its structured arrangement of nozzles, stainless steel flower holders,s and ladder clamps helps position glassware correctly during the washing process.
Key Features
- 3×6 module configuration
- Designed for the STIER A306 Module system
- Suitable for automatic laboratory glassware washers, including the S8000D Series
- Suitable for:
- Volumetric flasks
- Erlenmeyer flasks
- Round-bottom flasks
- Schott bottles
- Measuring cylinders
- Test tubes
- Other compatible laboratory glassware
- 18 washing nozzles
- 18 stainless steel flower holders
- 18 ladder clamps
- Helps clean laboratory glassware during automated washing
- Helps maintain the correct distance between the bottom of the glassware and the washing nozzle
- Provides easy access when loading and unloading glassware
Technical Specifications
| Specification | A306C |
|---|---|
| Brand | STIER |
| Model | A306C |
| Module configuration | 3×6 |
| Primary application | Automatic Laboratory Glassware Washers |
| Compatible washer example | S8000D Series |
| Suitable glassware | Volumetric flasks, Erlenmeyer flasks, round-bottom flasks, Schott bottles, measuring cylinders, test tubes, and more |
| Nozzle type | N60150 |
| Nozzle diameter | 6 mm |
| Nozzle height | 150 mm |
| Nozzle quantity | 18 |
| Holder type | S60SF 6.0 Stainless Steel Flower Holder |
| Holder quantity | 18 |
| Clamp type | C60SL 6.0 Ladder Clamp |
| Clamp quantity | 18 |
| Holder configuration | 6 × 150 mm stainless steel flower holder arrangement |
Specifications are based on STIER’s product information.
Applications
The A306C 3×6 Module is designed for laboratories that require organized, repeatable automated cleaning of different types of laboratory glassware.
It can be used for the following compatible glassware:
- Volumetric flasks
- Erlenmeyer flasks
- Round-bottom flasks
- Schott bottles
- Measuring cylinders
- Test tubes
The modular design lets you configure the washing system around the glassware being cleaned, helping you position items correctly relative to the washing nozzles.
Industries
The A306C can support automated glassware cleaning requirements in:
- Research laboratories
- Analytical laboratories
- Pharmaceutical laboratories
- Life science laboratories
- Chemical laboratories
- Industrial laboratories
- Healthcare-related laboratory environments
STIER manufactures cleaning systems for laboratory, pharmaceutical, and healthcare applications, including laboratory glassware washers and associated modular accessories.
Why Choose the STIER A306C 3×6 Module?
Correct positioning of laboratory glassware is an important part of automated washing. The A306C is designed to center compatible glassware and maintain the appropriate distance between the glassware and washing nozzles. As part of the STIER modular washing system, the A306C provides a purpose-designed configuration for laboratories cleaning a range of commonly used glassware in an automatic washer. STIER’s modular approach lets you select different basket modules and configurations based on laboratory cleaning requirements.
Product Information
Product: A306C 3×6 Module
Brand: STIER
Model: A306C
Application: Automatic Laboratory Glassware Washers
Compatible System: S8000D Series
Module Type: A306 Washing Basket Module
Configuration: 3×6
Nozzles: 18 × 6 mm × 150 mm
Holders: 18 × S60SF 6.0 Stainless Steel Flower Holders
Clamps: 18 × C60SL 6.0 Ladder Clamps
