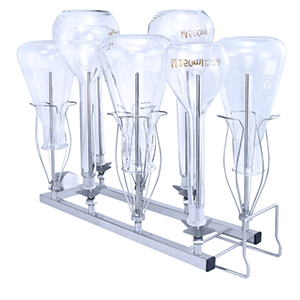

The STIER A204X1 2×4 Module is a specialized laboratory glassware washer basket module designed for automated washing and drying of laboratory glassware. It is designed to integrate with the STIER A204 Module system and automatic laboratory glassware washers such as the S8000D Series.
The A204X1 is suitable for a variety of laboratory glassware, including volumetric flasks, Erlenmeyer flasks, round-bottom flasks, Schott bottles, measuring cylinders and test tubes. Its 2×4 configuration provides eight washing positions, supporting efficient and repeatable automated glassware cleaning.
The module incorporates 8 stainless-steel washing nozzles, 4 stainless-steel flower-shaped holders, 4 POM cross supports, 4 ladder clamps, and 4 triangle clamps. The 210 mm washing nozzles provide effective internal spray coverage, while the basket components securely position glassware during the washing cycle.
Correct glassware positioning is essential for automated washing. The A204X1 helps center laboratory glassware, maintain the appropriate distance between the bottom of the vessel and the washing nozzle, and provide easy access for loading and unloading. This supports consistent cleaning performance and efficient laboratory workflows.
The STIER A204X1 2×4 Module suits laboratories that need flexible, automated glassware cleaning and a dedicated basket configuration for different types of laboratory vessels.
Key Features
- Model: A204X1
- Configuration: 2×4 module
- Brand: STIER
- Designed for automatic laboratory glassware washers
- Suitable for STIER S8000D Series systems
- Suitable for volumetric flasks
- Suitable for Erlenmeyer flasks
- Suitable for round-bottom flasks
- Suitable for Schott bottles
- Suitable for measuring cylinders
- Suitable for test tubes
- 8 × N60210 washing nozzles
- Nozzle dimensions: 6 mm diameter × 210 mm height
- 4 × stainless-steel flower-shaped holders
- 4 × POM cross supports
- 4 × ladder clamps
- 4 × triangle clamps
- Helps center glassware during automated washing
- Maintains correct glassware-to-nozzle positioning
- Supports automated washing and drying
- Facilitates convenient loading and unloading
Recommended Industries
- Laboratories & Research Facilities
- Pharmaceutical & Biotechnology
- Medical & Clinical Laboratories
- Universities & Research Institutions
- Chemical & Petrochemical
- Food & Beverage Testing
- Environmental Testing
- Agricultural & Soil Testing
- Mining & Materials Testing
- Animal Laboratories
- Hospital Laboratories
STIER identifies laboratory, animal laboratory, pharmaceutical, and hospital applications for its cleaning systems.
